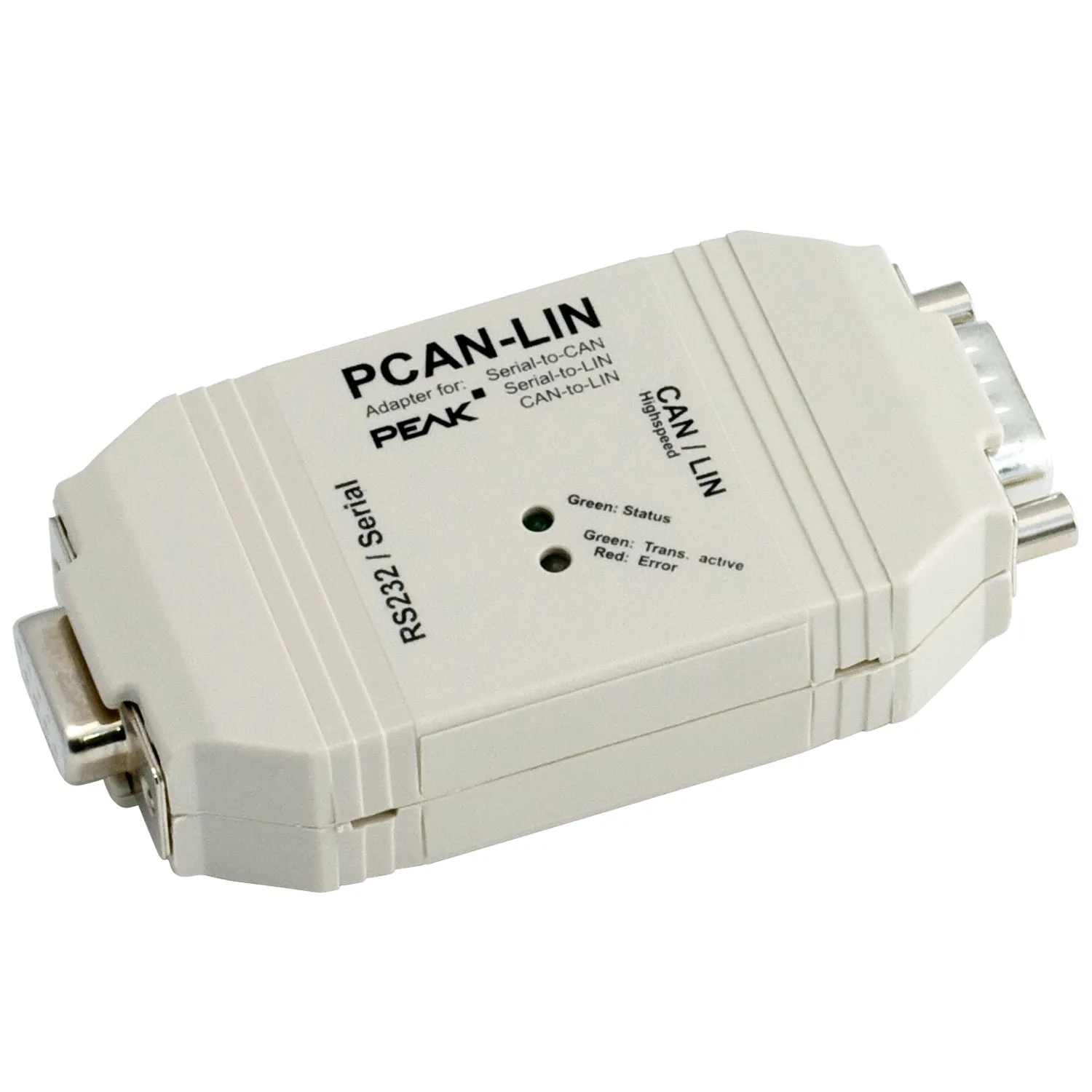

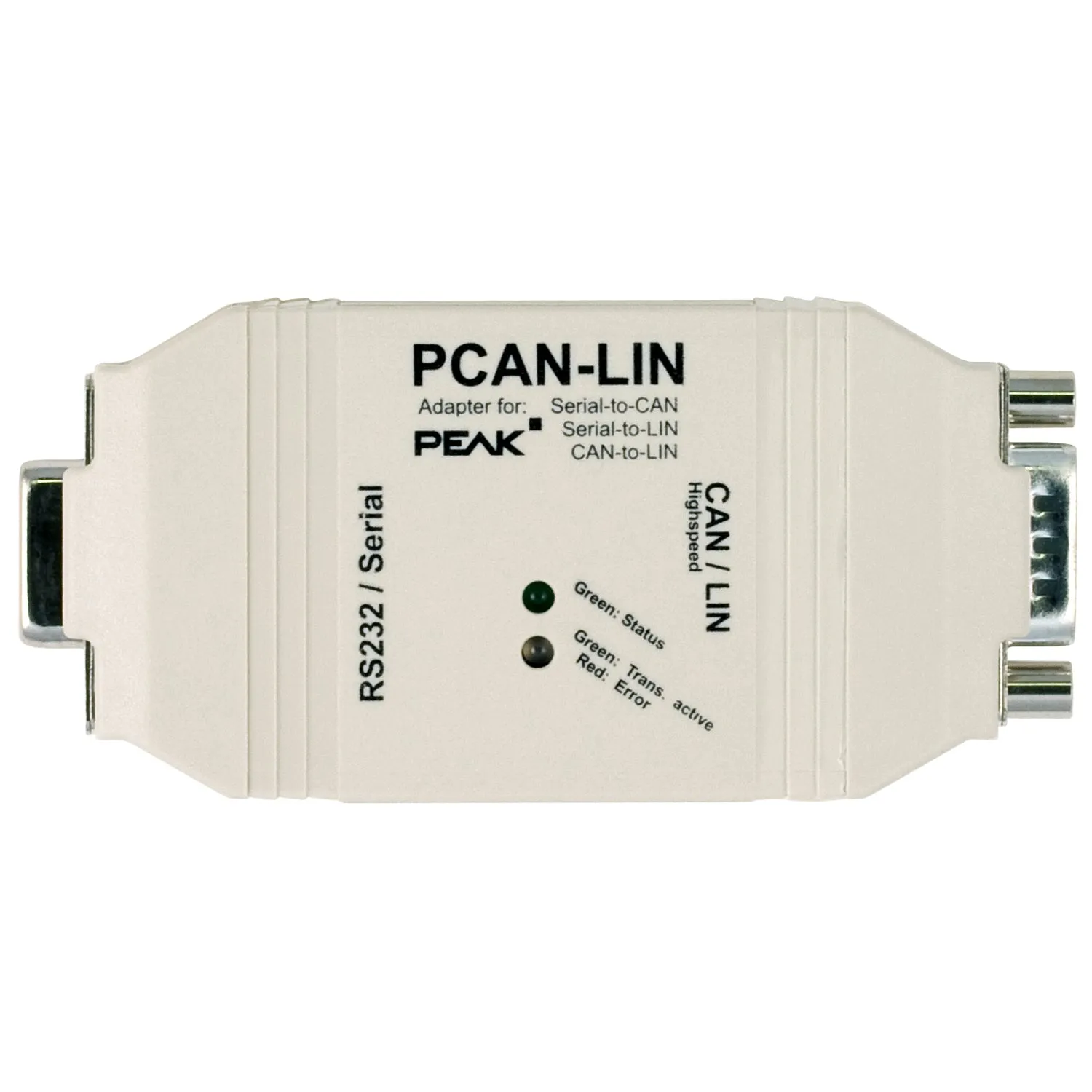

The PCAN-LIN module enables communication over CAN, LIN and serial interfaces. The included firmware enables data exchange between the different bus systems, while configuration software allows setup of different operational modes. For instance, when configured as a LIN master, the adapter can request data and send the incoming LIN data to the CAN bus and/or the serial interface. An offset can be used to route data between CAN and LIN
Default bit rate for CAN is 500 Kbps. Default bit rate for LIN is 19200 bps.
The High Speed version has a max CAN speed of 1 Mbps. The Low Speed version has a max CAN speed of 125 kbps.

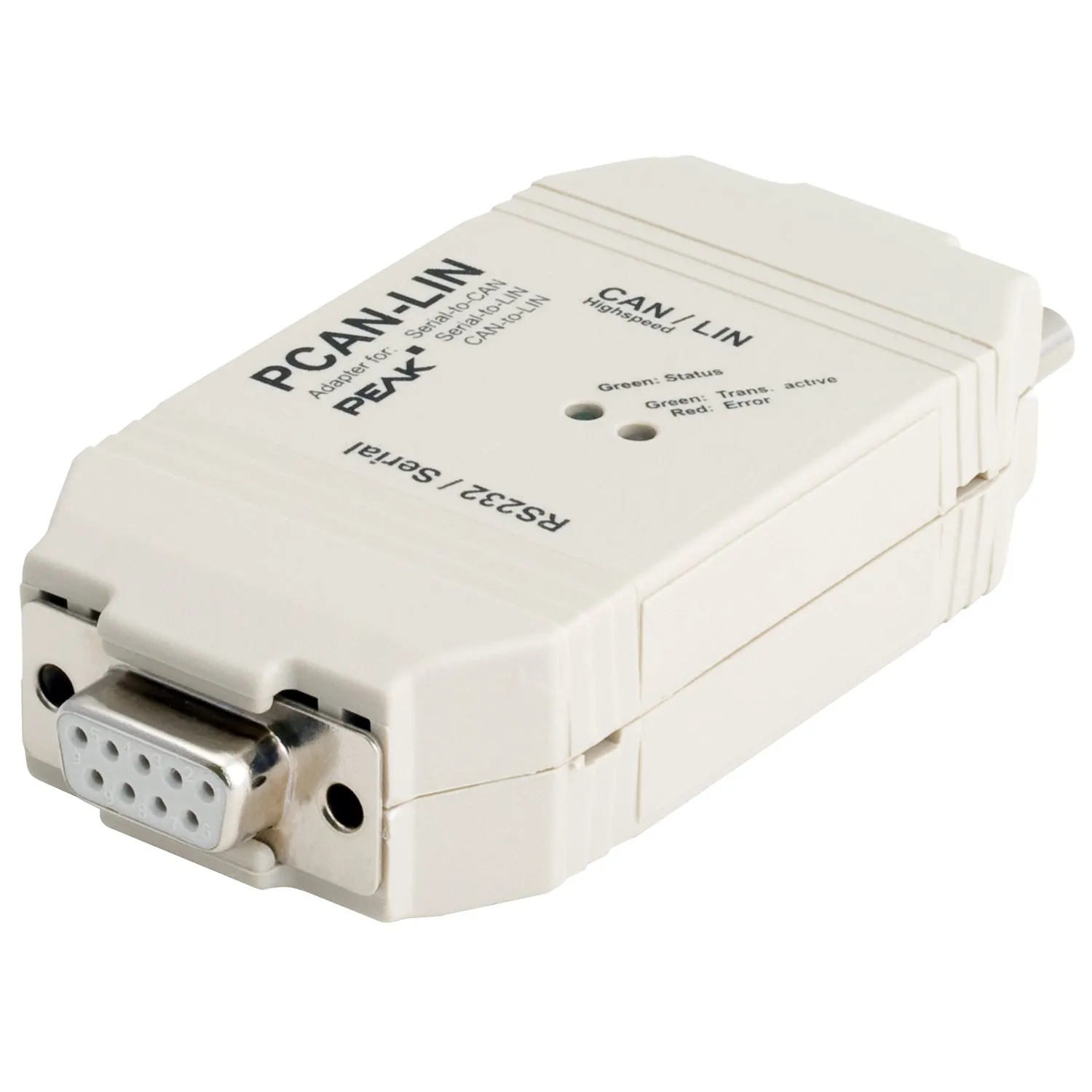

The module is supplied in a plastic casing.
Order Summary
SKU |
Speed Type |
Manufacturer Part # (MPN) |
|---|---|---|
| GC-CAN-LIN-HIGH | High Speed | IPEH-002025 |
| GC-CAN-LIN-HIGH-ISO | High Speed w/500V Isolation | IPEH-002029 |
| GC-CAN-LIN-LOW | Low Speed | IPEH-002028 |
