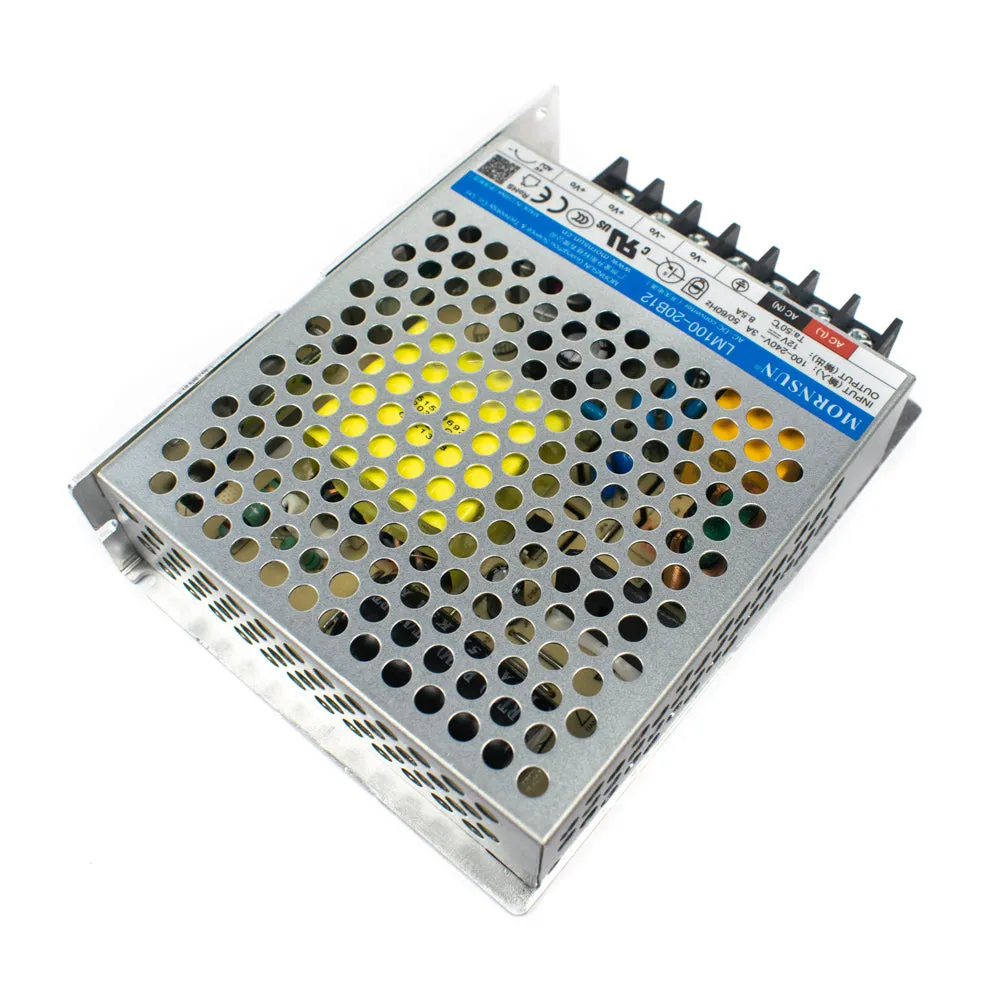

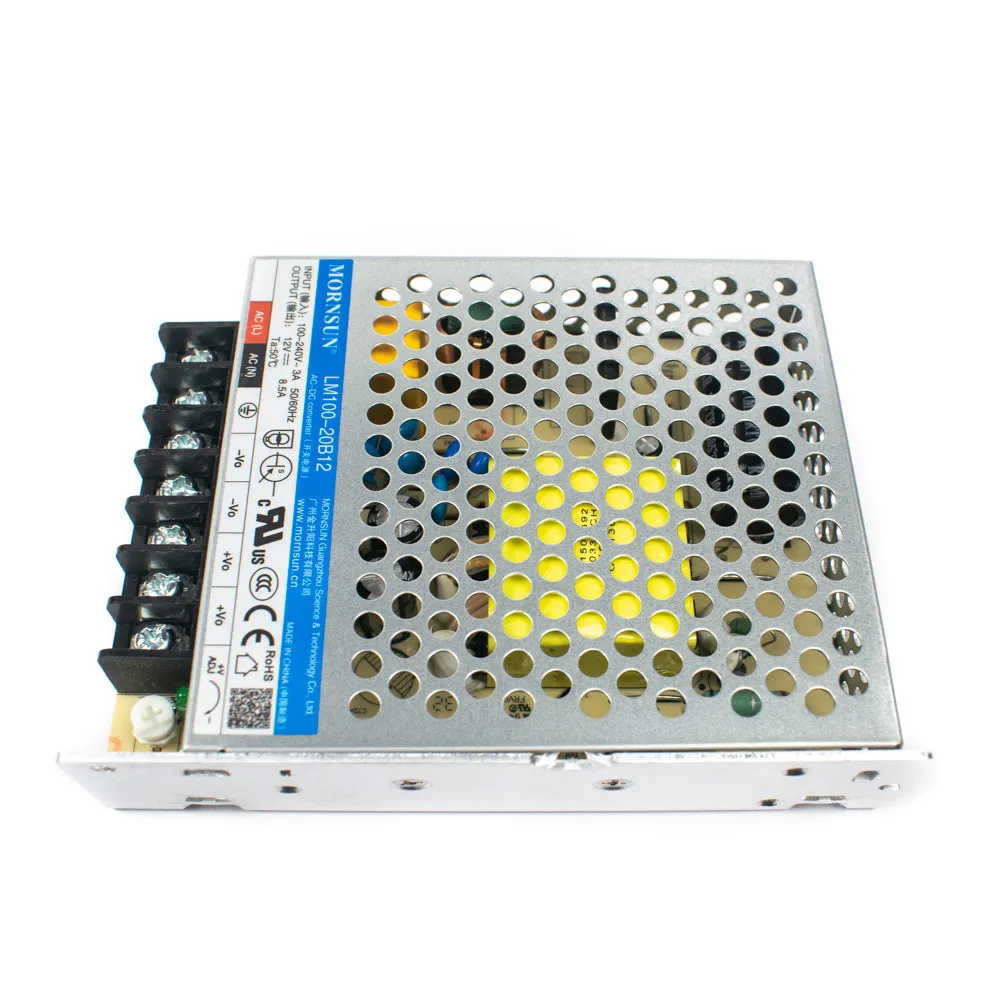

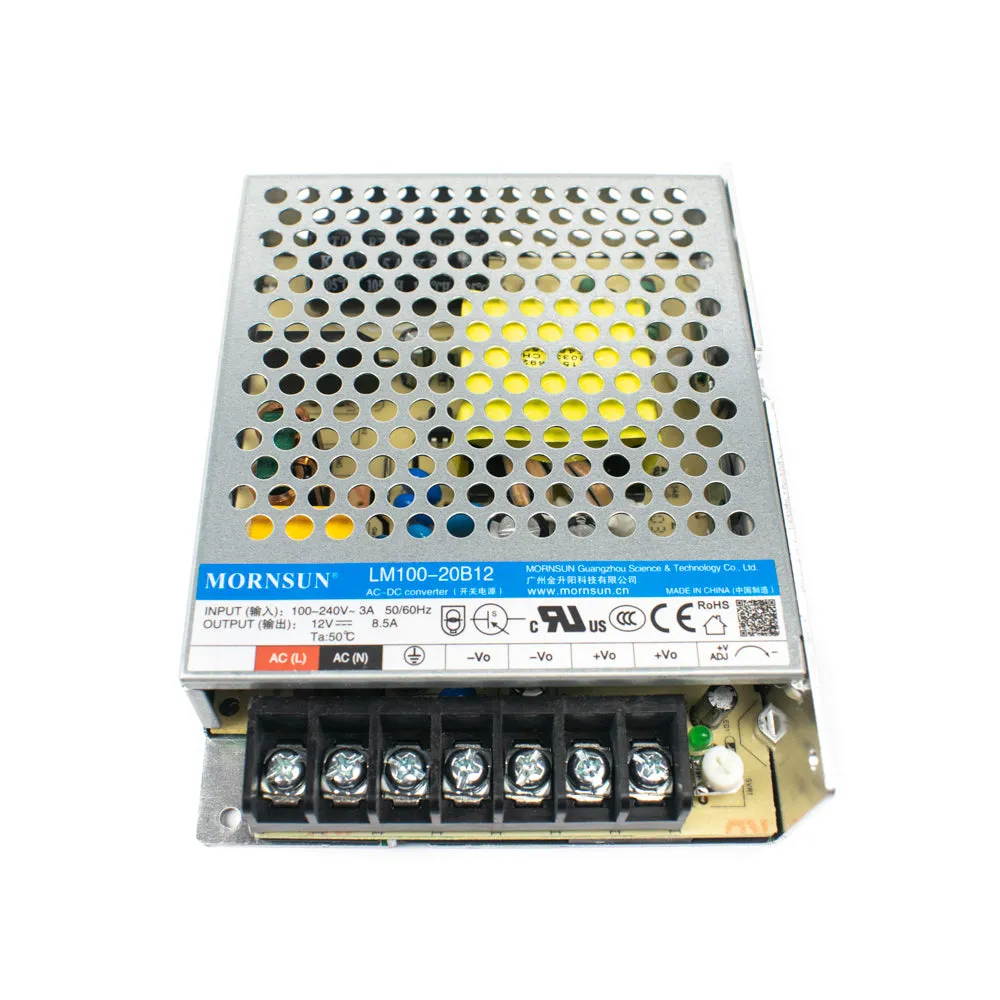

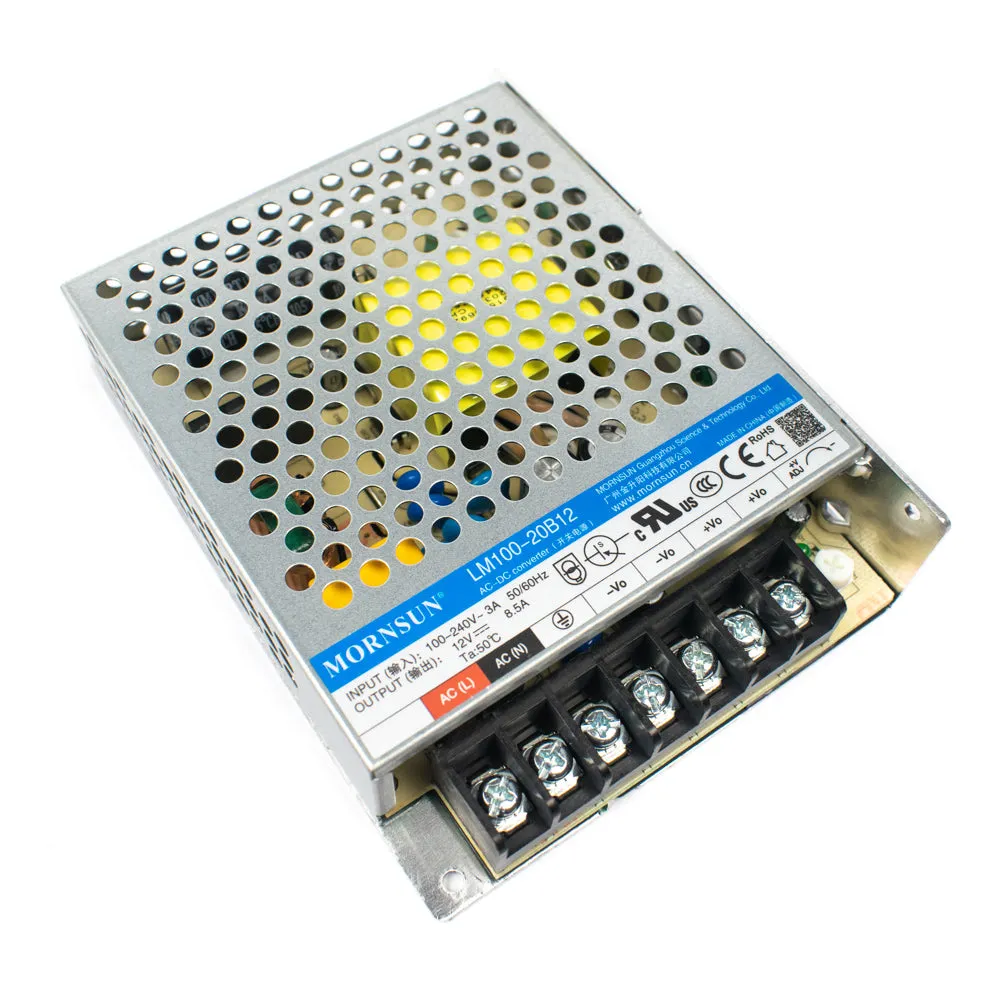

LM100-20Bxx series is one of Mornsun’s enclosed AC-DC switching power supplies. It features universal AC input and at the same time accepts DC input voltage, is cost-effective, low no-load power consumption, high efficiency and high reliability. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/EN/UL62368, EN60335, GB4943, EN61558 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.

FEATURES

• Universal 85 - 264VAC or 120 - 370VDC input voltage
• Accepts AC or DC input (dual-use of same terminal)
• Operating ambient temperature range: -30℃ to 70℃
• Low standby power consumption, high efficiency
• High I/O isolation test voltage up to 4000VAC
• Low ripple & noise
• Output short circuit, over-current, over-voltage protection
• Over-voltage class Ⅲ (designed to meet EN61558)
• Operating up to 5000m altitude

Specifications
